High silica casting filter mesh been coated with high-temperature resistant material such as phenolic resin and vermiculite to form rigid sheets or cap. used for filtering melting metal in the casting of grey cast iron, ductile cast iron, steel casting, copper casting and alumina casting.
Compare to ceramic honeycomb filter and ceramic foam filter, it’s advantage is economic.
Series:
1).High strength Molten iron filter
2).Molten steel filter
3).Copper alloy filter
4).Aluminum alloy filter
5).The cap type filter
Function: Make the wasted product of casting reduce by 50 - 60% .
The scope of application
|
The kind of filter |
The scope of application |
|
Molten iron filter |
Gray casting iron, ball iron and
small-scale to cast steel |
|
Molten steel filter |
Cast steel medium and small-scaly |
|
Copper alloy filter |
Copper alloy |
|
Aluminum alloy filter |
Aluminum alloy |
|
The cap type filter |
Melt the mould |
Technical parameter
|
|
Molten
iron
filter |
Molten
steel
filter |
Copper
alloy
filter |
Aluminum
alloy
filter |
|
Work temperature （℃） |
1450 |
1600 |
1200 |
850 |
|
Lasting working time
（Minute） |
10 |
5 |
10 |
10 |
|
The tensile strength of
normal atmospheric
temperature Kg/4 |
> 8 |
16 |
> 6 |
> 6 |
|
Emit the quantity of
gas （Cm3/g） |
< 60 |
< 60 |
< 60 |
< 30 |
|
Specification
|
Name |
Hole of network Size |
Size |
|
Molten iron filter |
1.5×1.5 |
50×50； 100×100 |
|
2.5×2.5 |
Can make according to
user's request |
|
2×2 |
|
Molten steel filter |
1.5×1.5 |
Can make according to
user's request |
|
2.5×2.5 | |

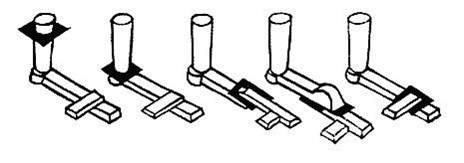

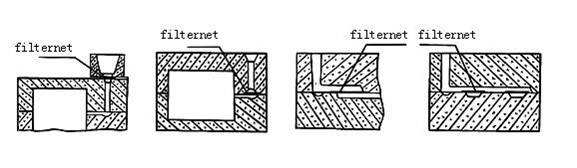

Put position

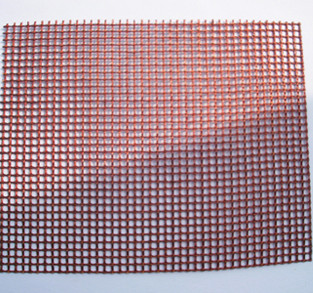

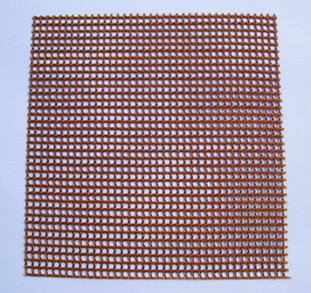

aluminum filter cloth (smoke)100x100mm, hole size 2x2mm,

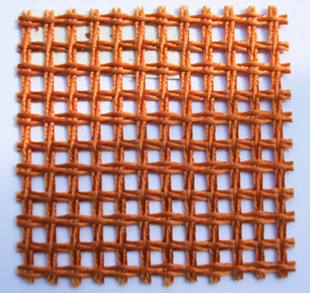

high silica fiberglass filter cloth for iron and copper 100x80mm, hole size 2x2mm,

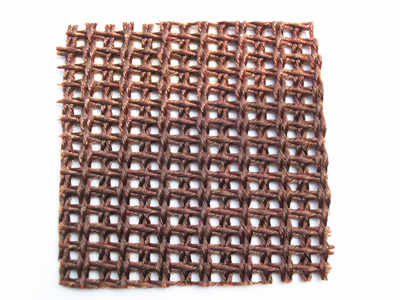

high silica fiberglass filter cloth for steel 50x50mm, hole size 1.5x1.5mm,

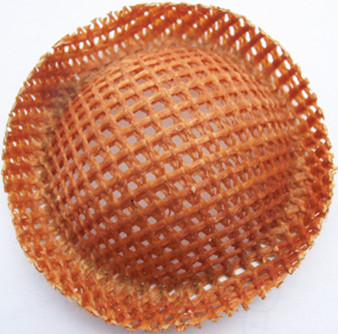

high silica fiberglass filter cloth--cap shape-1

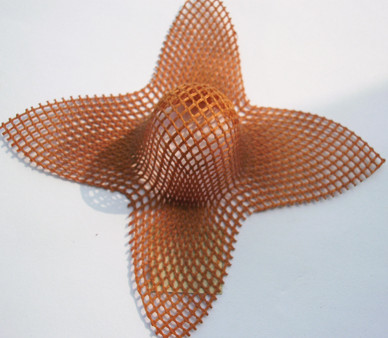

high silica fiberglass filter cloth--cap shape-2
|
