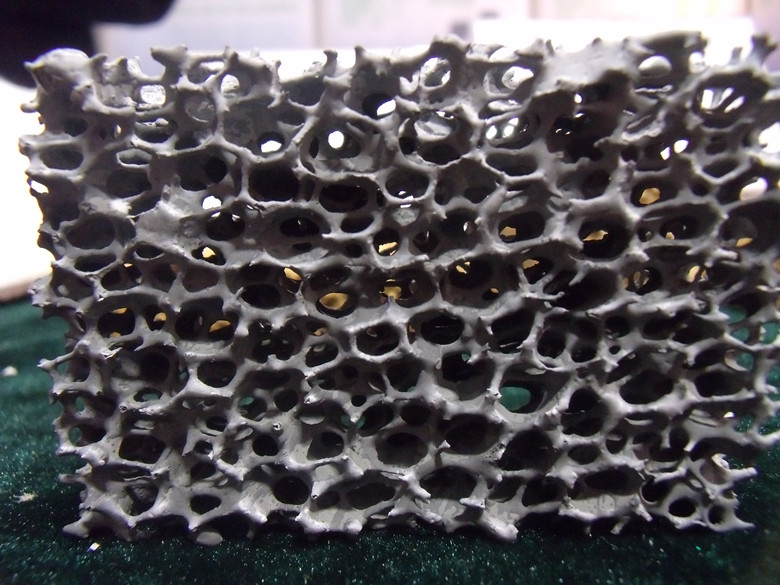

CFS(Silicon Carbide Ceramic Foam Filter)
Function: Apply to improve quality of nodular graphite iron castings, grey iron castings, tenacity iron castings, drop turbulent of iron and copper solution at feeder mouth. It can bear seamy environment in the process of mould.
·Purge iron solution
·Improve quality of iron casting
·Reduce foreign residue of iron casting
·Stabilize time of mould
Technical Index:
Bore Density (PPI) 8----30
Porosity (%) 80---90
Max. Factory Tem. (℃) 1500
Bending Strength (Mpa)(Normal Tem.) 1.0
Compression Strengh(Mpa)( Normal Tem.) 0.9
Thermal Shock Resistance(time/1100℃) 6
Suitable for Iron,copper
We are changeable according to our clients’ order’s request

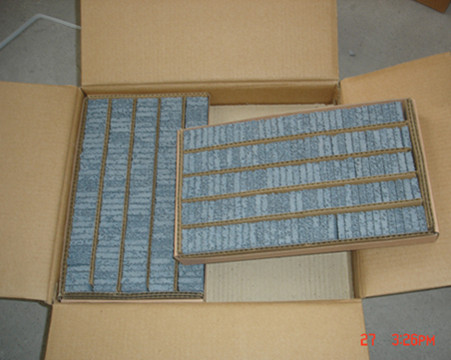

Packing Show
Usual size for silicon carbide ceramic foam filter
|
Sic ceramic foam filter |
Area (cm2) |
|
40x40x11/10ppi |
16 |
|
40x40x11/20ppi |
16 |
|
40Dx15/20ppi |
12.6 |
|
40x40x22/10ppi |
16 |
|
40x40x22/20ppi |
16 |
|
50x50x13/20ppi |
25 |
|
50x50x15/10ppi |
25 |
|
50x50x15/20ppi |
25 |
|
50x50x22/10ppi |
25 |
|
50x50x22/20ppi |
25 |
|
50Dx13/10ppi |
19.6 |
|
50Dx13/20ppi |
19.6 |
|
50x75x22/10ppi |
37.5 |
|
50x75x22/20ppi |
37.5 |
|
50x100x15/10ppi |
50 |
|
50x100x15/20ppi |
50 |
|
60x60x22/10ppi |
36 |
|
60x60x22/20ppi |
36 |
|
60Dx18/20ppi |
28.3 |
|
75x75x22/10ppi |
56.3 |
|
75x75x22/20ppi |
56.3 |
|
75Dx22/10ppi |
44.2 |
|
75x100x22/10ppi |
75 |
|
75x100x22/20ppi |
75 |
|
100x100x22/10ppi |
100 |
|
100x100x22/20ppi |
100 |
|
100x150x22/10ppi |
150 |
|
150x150x22/10ppi |
225 | |
