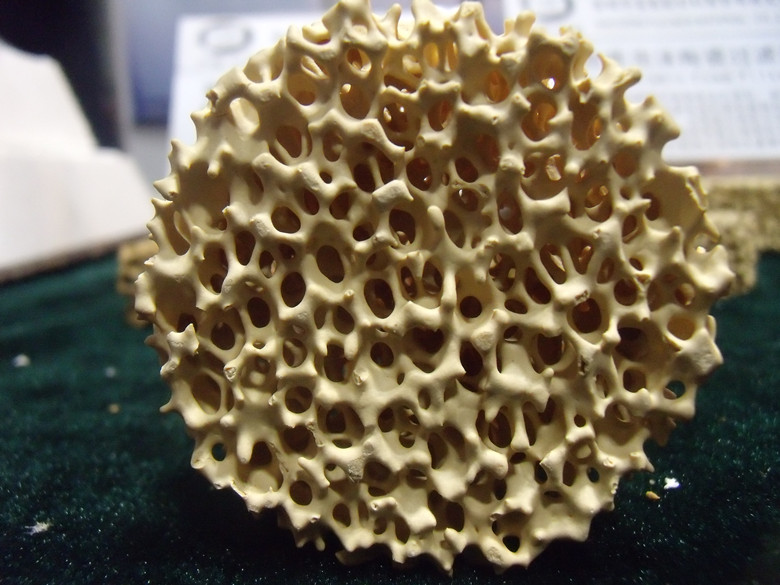

CFZ(Zirconium Ceramic Foam Filters)
Function:·Apply to purge solution of carbon steel, steel alloy and stainless steel,
It can endear the demand of steel technology and get rid of residue and
Materials which been left behind after the model is been eroded.
·Drop turbulent and reduce re-oxide residue.
·Improve accepted rate of steel casting
·Reduce impurity of steel casting
·Drop re-oxide flaw
·Reduce second-face flaw after machine process
Technical Index:
Bore Density (PPI) 8----30
Porosity (%) 80---90
Max. Factory Tem. (℃) 1700
Bending Strength (Mpa)(Normal Tem.) 0.8-1.0
Compression Strengh(Mpa)( Normal Tem.) 1.0-1.2
Thermal Shock Resistance(time/1100℃) 6
Suitable for Steel Alloy
We are changeable according to our clients’ order’s request
Usual size for zirconia ceramic foam filter
Zirconia ceramic foam filter |
Area (cm2) |
50x50x15/15ppi |
25 |
50D x 20/10ppi |
19.6 |
60Dx 20/10ppi |
28.3 |
70Dx15/10ppi |
44.2 |
70Dx25/10ppi |
44.2 |
90Dx25/10ppi |
63.6 |
100x100x25/10ppi |
100 |
50x50x20/10ppi |
25 |
75x75x25/10ppi |
56.3 |
100x100x25/10ppi |
100 |
150x150x30/10ppi |
225 |
200Dx35/10ppi |
314 | |
