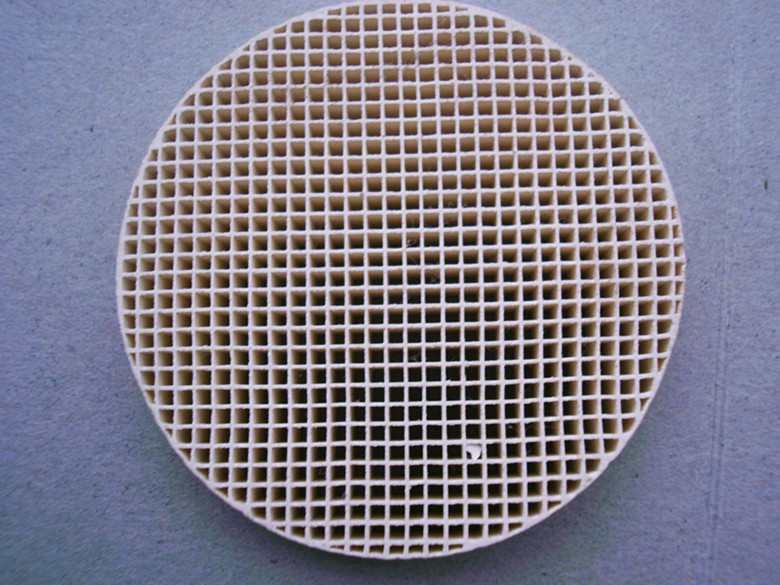

Ceramic Honeycomb Filter (also called Extruded Ceramic Filter) apply to metal liquid filtration, has the function as:
1. eliminate big oxide mechanically by it’s small hole
2. commutate turbulent laminar flow
3. absorb impurities by it’s eyelets
4. improve casting/foundry products density, intensity and toughness, enhance productivity rate
Category and specification:
|
Material / Item |
Cordierite |
Mullite |
Alundum mullite |
|
Al2O3 (%) |
37 |
46 |
70 |
|
Cell type |
Square, round, triangle |
|
Cell density (cpsi) |
100-400 |
|
Millihole (µm) |
2-3 |
|
Coefficient of thermal expansion (*10-6/℃) |
≤1.8 |
≤4.0 |
≤5.5 |
|
Work tem. (℃) |
1300 |
1500 |
1600 |
|
Refractoriness (℃) |
1390 |
1550 |
1700 |
|
Compressive Strength
at normal tem. (Mpa) |
≥12 |
≥15 |
≥15 |
|
Application |
Aluminium |
copper, iron and steel casting |
Stainless steel casting |
|
Note: Mullte is the most favorable one in the market. |

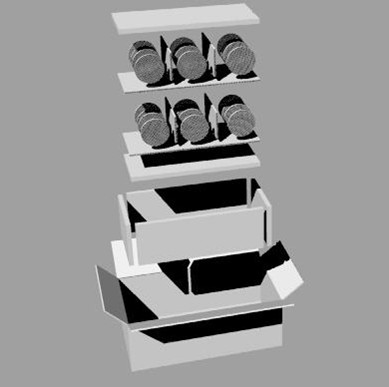

Packing show:
 |
